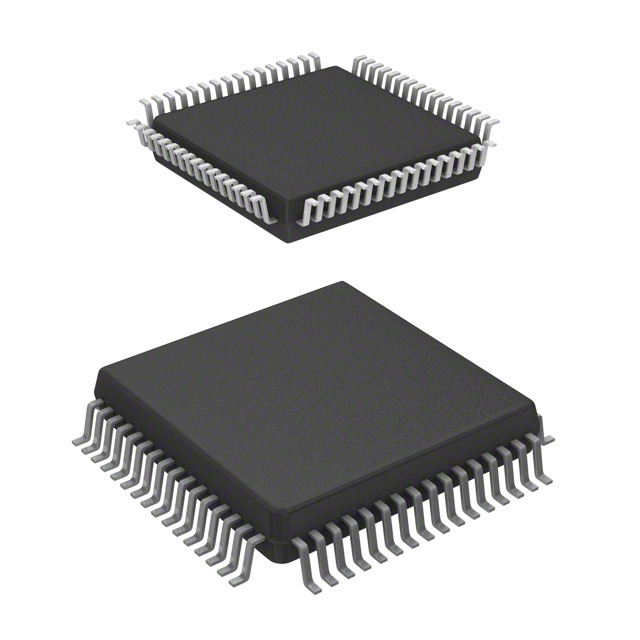

MC9S08PT60AVQH
IC MCU 8BIT 60KB FLASH 64QFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 microcontroller, part number MC9S08PT60AVQH, features an 8-bit S08 core operating at 20MHz. This 64-QFP (14x14) packaged device offers 60KB of FLASH program memory and 4KB of RAM. It includes 256 bytes of EEPROM, 57 I/O pins, and a 16-channel, 12-bit Analog-to-Digital converter. Connectivity options comprise I2C, LINbus, SPI, and UART/USART interfaces. Integrated peripherals include LVD, POR, PWM, and WDT. The device operates from 2.7V to 5.5V with an internal oscillator and is suitable for surface mount applications, rated for an operating temperature range of -40°C to 105°C. This component is commonly utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-QFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 16x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 64-QFP (14x14) |
| Number of I/O | 57 |
| Programmable | Not Verified |
