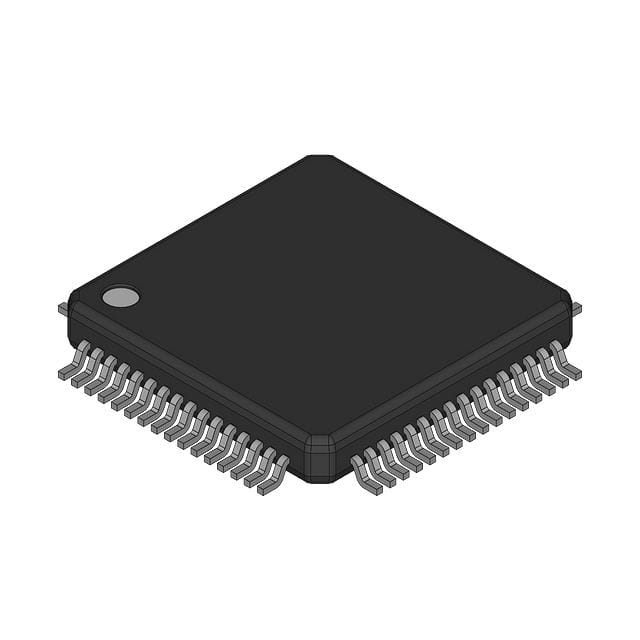

MC9S08PA60VLH
IC MCU 8BIT 60KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 series microcontroller, part number MC9S08PA60VLH. This 8-bit MCU features a 20MHz S08 core with 60KB of FLASH program memory and 4KB of RAM. It includes 256 bytes of EEPROM, an internal oscillator, and 57 I/O pins. On-chip peripherals include LVD, POR, PWM, and WDT. Connectivity options encompass I2C, LINbus, SPI, and UART/USART. The device is equipped with a 16-channel, 12-bit Analog-to-Digital converter. Designed for surface mount applications, it is supplied in a 64-LQFP (10x10) package. Operating voltage is 2.7V to 5.5V with an operating temperature range of -40°C to 105°C. This component is utilized in automotive, industrial automation, and consumer electronics applications.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 16x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 57 |
| Programmable | Not Verified |
