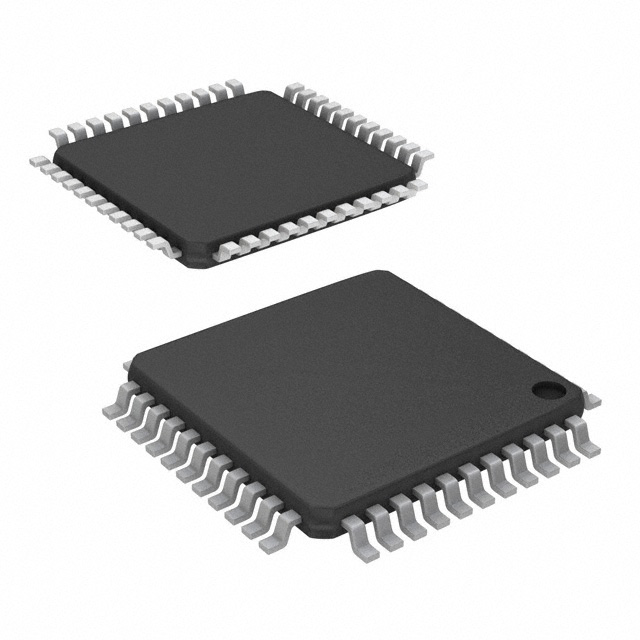

MC9S08PA60VLD
IC MCU 8BIT 60KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 series microcontroller, part number MC9S08PA60VLD, features an 8-bit S08 core operating at 20MHz. This device offers 60KB of FLASH program memory and 4KB of RAM, complemented by 256 bytes of EEPROM. Connectivity options include I2C, LINbus, SPI, and UART/USART. The MC9S08PA60VLD is equipped with a 12-channel, 12-bit Analog-to-Digital converter. Peripherals include LVD, POR, PWM, and WDT functionalities. With 37 I/O lines and an internal oscillator, it is housed in a 44-LQFP (10x10) surface mount package. Operating voltage ranges from 2.7V to 5.5V, with an operating temperature range of -40°C to 105°C. This component is suitable for applications in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 12x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 37 |
| Programmable | Not Verified |
