MC9S08PA16VLD

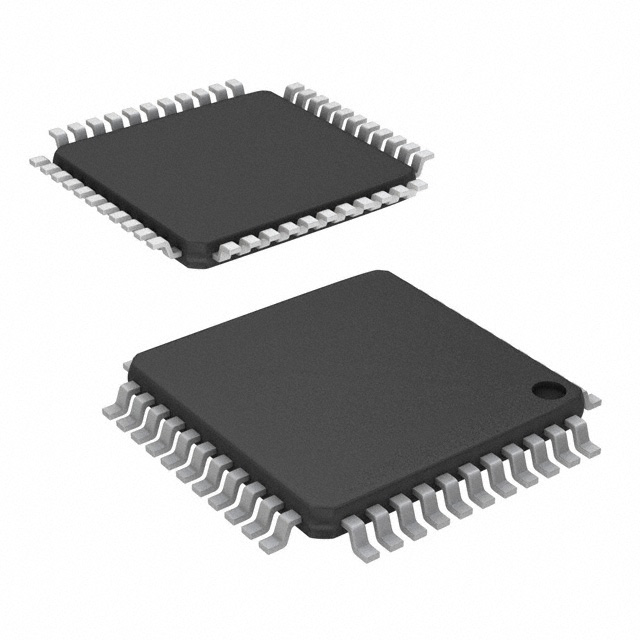

IC MCU 8BIT 16KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 series microcontroller, part number MC9S08PA16VLD, is an 8-bit MCU featuring a 20MHz S08 core. This component offers 16KB of FLASH program memory and 2KB of RAM. It includes a 12-channel 12-bit Analog-to-Digital converter and 256 bytes of EEPROM. Connectivity options include I2C, LINbus, SPI, and UART/USART. Peripherals include Low Voltage Detect (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The device is supplied in a 44-LQFP (10x10) surface mount package and operates from a 2.7V to 5.5V supply range, with an operating temperature range of -40°C to 105°C. This MCU is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 12x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 37 |
| Programmable | Not Verified |
