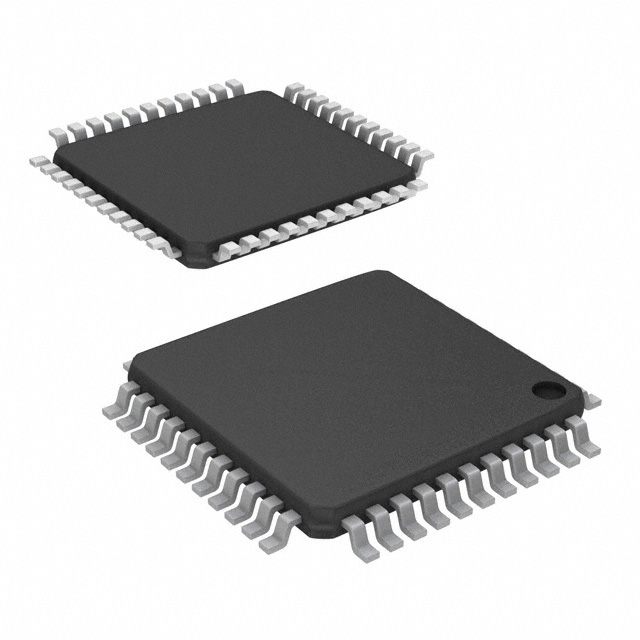

MC9S08PA16AVLD
IC MCU 8BIT 16KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 series microcontroller, part number MC9S08PA16AVLD, is an 8-bit processing unit operating at 20MHz. This component features 16KB of FLASH program memory and 2KB of RAM. It offers extensive connectivity options including I2C, LINbus, SPI, and UART/USART interfaces. The device integrates 12-bit analog-to-digital converters with 12 channels and includes peripherals such as LVD, POR, PWM, and WDT. Housed in a 44-LQFP (10x10) surface-mount package, it supports a supply voltage range of 2.7V to 5.5V and operates within an ambient temperature range of -40°C to 105°C. Found in automotive, industrial, and consumer electronics applications, this microcontroller is delivered in tray packaging.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| Core Processor | S08 |
| Data Converters | A/D 12x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 37 |
| Programmable | Not Verified |
