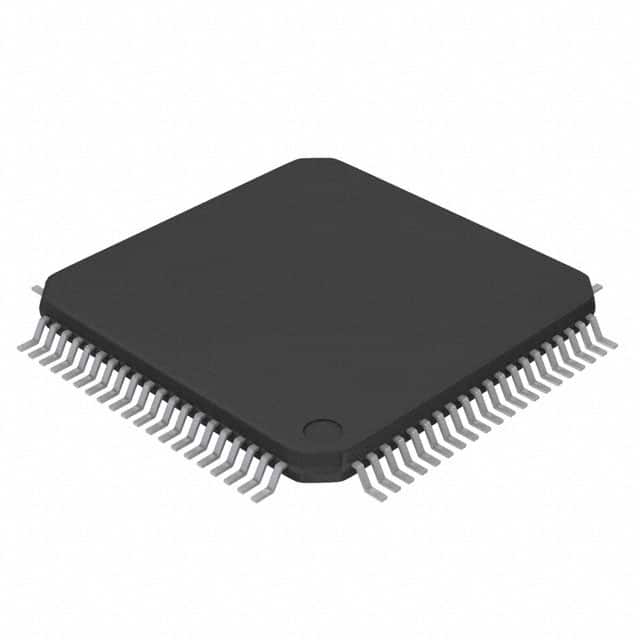

MC9S08LG32CLK
IC MCU 8BIT 32KB FLASH 80LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 microcontroller, part number MC9S08LG32CLK, features an 8-bit S08 core operating at up to 40MHz. This device offers 32KB of FLASH program memory and 1.9KB of RAM. On-chip peripherals include LCD, LVD, and PWM controllers, alongside an I2C, SCI, and SPI interface. Data conversion is handled by a 16-channel 12-bit Analog-to-Digital converter. The MC9S08LG32CLK is housed in an 80-LQFP (14x14) surface mount package, supporting 69 I/O lines and operating within a voltage range of 2.7V to 5.5V. Its internal oscillator provides reliable timing. Typical applications span automotive, industrial automation, and consumer electronics. The component is supplied in trays.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1.9K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 16x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LCD, LVD, PWM |
| Supplier Device Package | 80-LQFP (14x14) |
| Number of I/O | 69 |
| Programmable | Not Verified |
