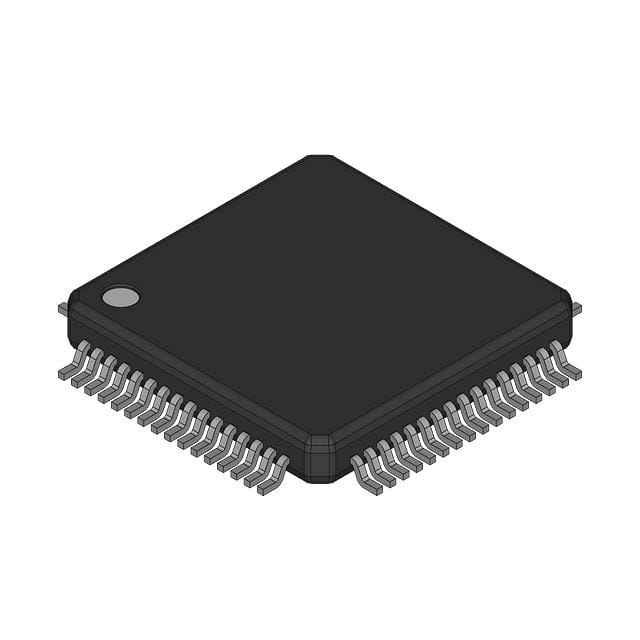

MC9S08LG32CLH
IC MCU 8BIT 32KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 microcontroller, part number MC9S08LG32CLH, features an 8-bit S08 core operating at 40MHz. This device offers 32KB of FLASH program memory and 1.9KB of RAM. Connectivity options include I2C, SCI, and SPI interfaces. The MC9S08LG32CLH is equipped with 12 channels of 12-bit Analog-to-Digital converters and includes peripherals such as LCD, LVD, and PWM. With 53 I/O pins, it is housed in a 64-LQFP (10x10) surface-mount package, suitable for operation within a temperature range of -40°C to 85°C. The voltage supply range is 2.7V to 5.5V. This component is widely utilized in automotive, industrial, and consumer electronics applications. Packaging is provided in trays.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 1.9K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 12x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LCD, LVD, PWM |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 53 |
| Programmable | Not Verified |
