MC9S08JS16LCFK
IC MCU 8BIT 16KB FLASH 24QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More

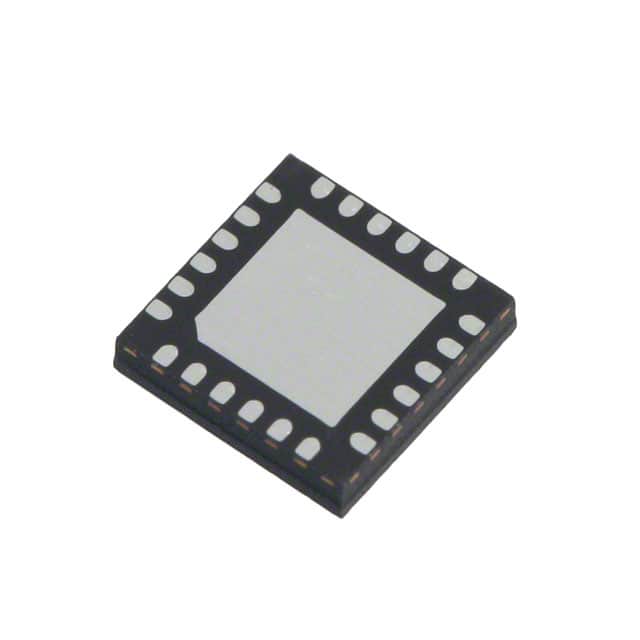

NXP USA Inc. S08 Series MC9S08JS16LCFK is an 8-bit microcontroller featuring a 48MHz S08 core. This component offers 16KB of FLASH program memory and 512 bytes of RAM. The device includes 14 I/O pins and supports multiple communication protocols, including LINbus, SCI, SPI, and USB. Integrated peripherals include LVD, POR, and PWM. The MC9S08JS16LCFK is housed in a 24-HVQFN (5x5) surface-mount package with an exposed pad, operating from a 2.7V to 5.5V supply range. Its operating temperature is rated from -40°C to 85°C (TA). This microcontroller is suitable for applications in automotive and industrial automation sectors.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 48MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | LINbus, SCI, SPI, USB |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 24-HVQFN (5x5) |
| Number of I/O | 14 |
| Programmable | Not Verified |
