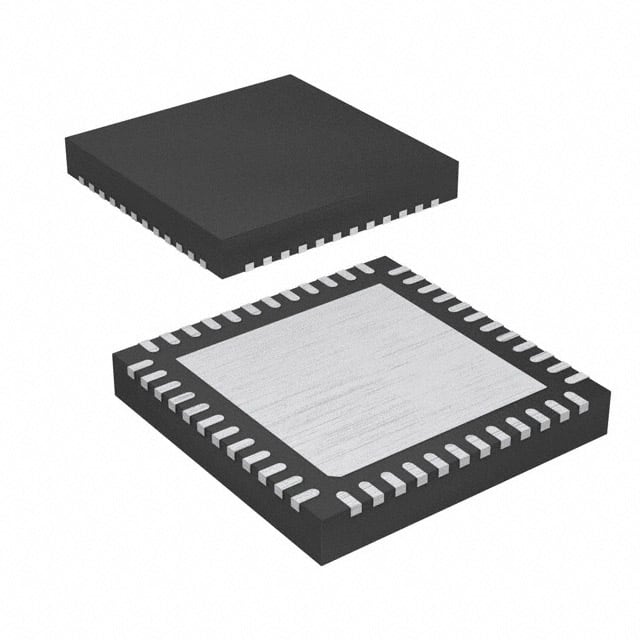

MC9S08GT60ACFDER
IC MCU 8BIT 60KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 Series microcontroller MC9S08GT60ACFDER. This 8-bit S08 core microcontroller features a 40MHz clock speed and 60KB of FLASH program memory. It includes 4K x 8 RAM, 39 I/O pins, and a range of peripherals such as LVD, POR, PWM, and WDT. Integrated connectivity options include I2C, SCI, and SPI. The device is equipped with an 8x10-bit Analog-to-Digital converter. This component is supplied in a 48-QFN-EP (7x7) package suitable for surface mounting, presented on a Tape & Reel (TR). Its operating temperature range is -40°C to 85°C. Applications include automotive, industrial automation, and consumer electronics.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 39 |
| Programmable | Verified |
