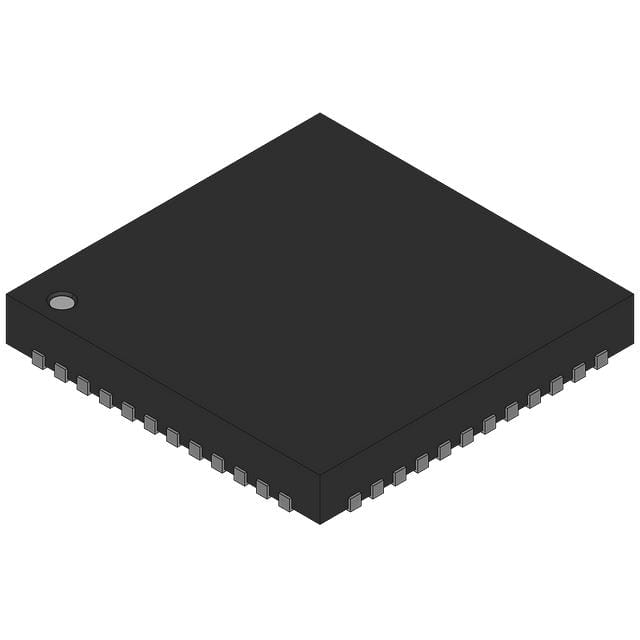

MC9S08GT32ACFDE
IC MCU 8BIT 32KB FLASH 48QFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. S08 microcontroller, part number MC9S08GT32ACFDE, features an 8-bit S08 core operating at 40MHz. This device offers 32KB of FLASH program memory and 2KB of RAM, with 39 programmable I/O pins. Integrated peripherals include LVD, POR, PWM, and WDT. Connectivity is supported via I2C, SCI, and SPI interfaces. Data conversion is handled by an 8x10-bit A/D converter. The MC9S08GT32ACFDE is housed in a 48-QFN-EP (7x7) surface mount package and operates within a voltage range of 1.8V to 3.6V, with an ambient temperature range of -40°C to 85°C. This component finds application in consumer electronics, industrial automation, and automotive systems.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Number of I/O | 39 |
| Programmable | Verified |
