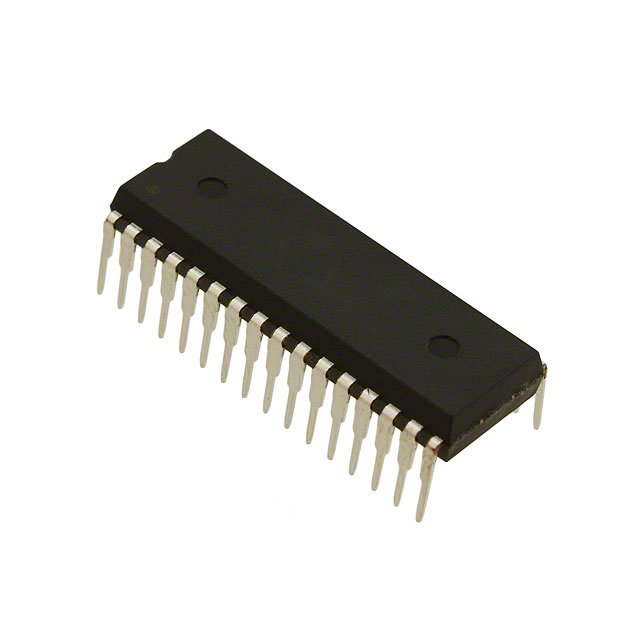

MC9S08FL16CBM
IC MCU 8BIT 16KB FLASH 32SDIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. S08 series microcontroller, part number MC9S08FL16CBM, is an 8-bit MCU featuring a 20MHz S08 core. This device offers 16KB of FLASH program memory and 1KB of RAM, with a 12x8-bit Analog-to-Digital converter and an internal oscillator. Connectivity includes SCI, and peripherals such as LVD, PWM, and WDT are integrated. The MC9S08FL16CBM is housed in a 32-SDIP (0.400", 10.16mm) package suitable for through-hole mounting. Operating within a temperature range of -40°C to 85°C (TA), it requires a supply voltage of 4.5V to 5.5V. This component is commonly found in industrial automation and consumer electronics applications.
Additional Information
Series: S08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Speed | 20MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | S08 |
| Data Converters | A/D 12x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI |
| Peripherals | LVD, PWM, WDT |
| Supplier Device Package | 32-SDIP |
| Number of I/O | 30 |
| Programmable | Not Verified |
