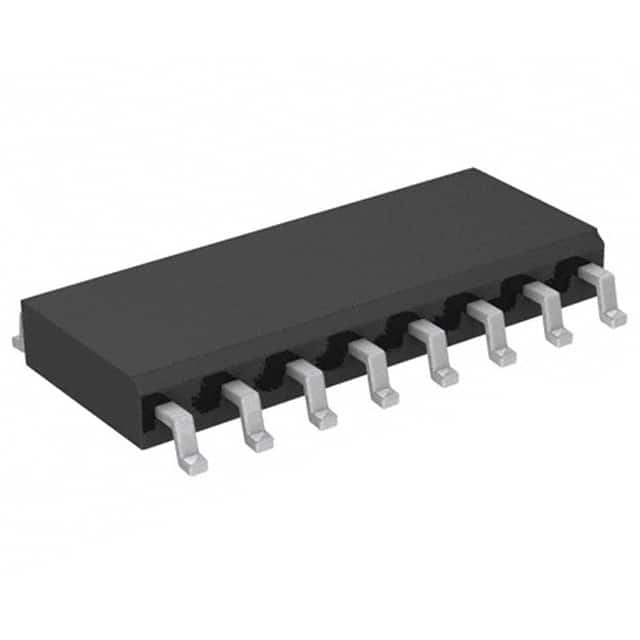

MC9RS08KB8CSG
IC MCU 8BIT 8KB FLASH 16SOICManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. RS08 series microcontroller, part number MC9RS08KB8CSG, is an 8-bit device featuring an RS08 core processor operating at up to 20MHz. This surface mount component is housed in a 16-SOIC package with a 0.154" width. It offers 8KB of FLASH program memory and 254 bytes of RAM. Connectivity options include I2C and SPI interfaces. The MC9RS08KB8CSG is equipped with an 8x10-bit Analog-to-Digital converter and peripherals such as LVD, POR, PWM, and WDT. Its operating temperature range is -40°C to 85°C (TA), and it requires a supply voltage between 1.8V and 5.5V. The internal oscillator simplifies design. This microcontroller is utilized in various industrial applications.
Additional Information
Series: RS08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 254 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | RS08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 16-SOIC |
| Number of I/O | 14 |
| Programmable | Not Verified |
