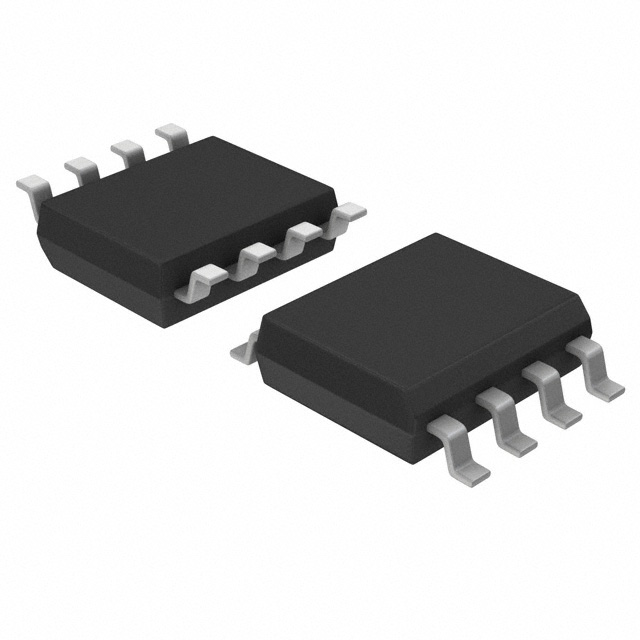

MC9RS08KB2CSCR
IC MCU 8BIT 2KB FLASH 8SOICManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
This NXP USA Inc. RS08 series microcontroller, part number MC9RS08KB2CSCR, features an 8-bit RS08 core operating at up to 20MHz. It offers 2KB of FLASH program memory and 126 bytes of RAM. Peripheral capabilities include I2C and SPI interfaces, a 4-channel 10-bit Analog-to-Digital converter, and integrated peripherals such as LVD, POR, PWM, and WDT. The device is supplied in an 8-SOIC package and supports surface mount installation. It operates within a voltage range of 1.8V to 5.5V and an ambient temperature range of -40°C to 85°C. This component is commonly utilized in automotive, industrial, and consumer electronics applications. The packaging is Tape & Reel (TR).
Additional Information
Series: RS08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 126 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | RS08 |
| Data Converters | A/D 4x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | I2C, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 8-SOIC |
| Number of I/O | 6 |
| Programmable | Not Verified |
