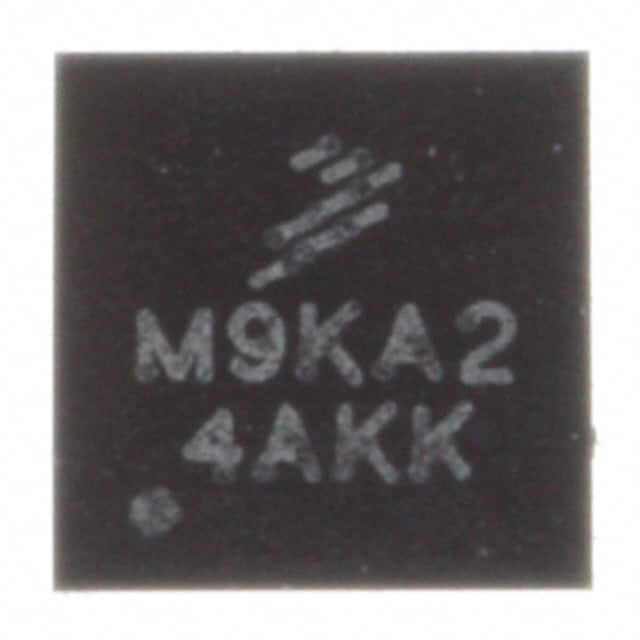

MC9RS08KA2CDB
IC MCU 8BIT 2KB FLASH 6DFNManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
RS08 RS08 Microcontroller IC 8-Bit 10MHz 2KB (2K x 8) FLASH 6-DFN-EP (3x3)
Additional Information
Series: RS08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 6-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 10MHz |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 63 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | RS08 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Connectivity | - |
| Peripherals | LVD, POR, WDT |
| Supplier Device Package | 6-DFN-EP (3x3) |
| Number of I/O | 2 |
| Programmable | Not Verified |
