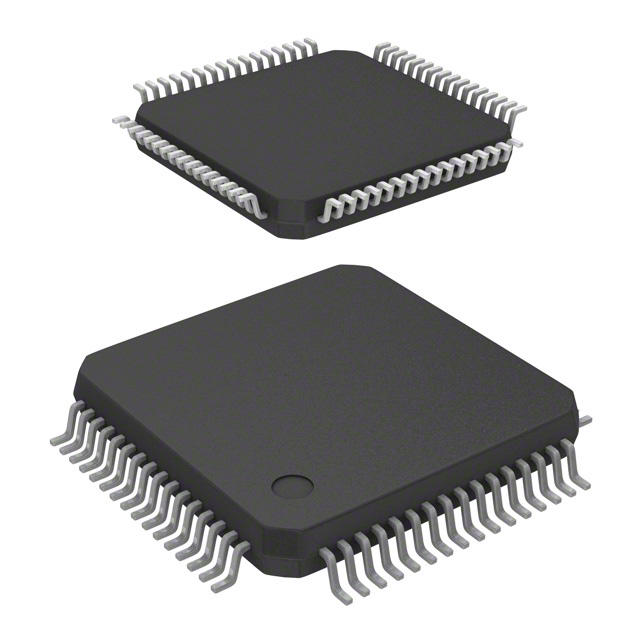

MC908LJ24CPBE
IC MCU 8BIT 24KB FLASH 64LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 series microcontroller, part number MC908LJ24CPBE. This 8-bit MCU features a 24KB FLASH program memory and 768 Bytes of RAM, operating at up to 8MHz. It includes a 6x10-bit Analog-to-Digital converter and a suite of peripherals including LCD, LVD protection, Power-On Reset (POR), and Pulse Width Modulation (PWM). Connectivity options are I2C, IRSCI, and SPI. The device is housed in a 64-LQFP (10x10) surface-mount package and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: HC08RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 24KB (24K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 6x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | I2C, IRSCI, SPI |
| Peripherals | LCD, LVD, POR, PWM |
| Supplier Device Package | 64-LQFP (10x10) |
| Number of I/O | 40 |
| Programmable | Not Verified |
