MC908KX2CDWER-NXP
MICROCONTROLLER, 8 BIT, HC08/S08Manufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
HC08 HC08 Microcontroller IC 8-Bit 8MHz 2KB (2K x 8) FLASH 16-SOIC
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

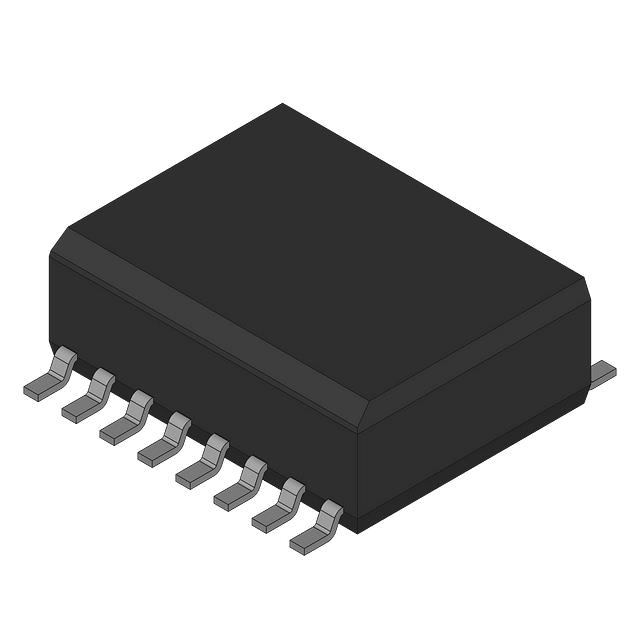

| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 2KB (2K x 8) |
| RAM Size | 192 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 16-SOIC |
| Number of I/O | 13 |
| Programmable | Not Verified |
