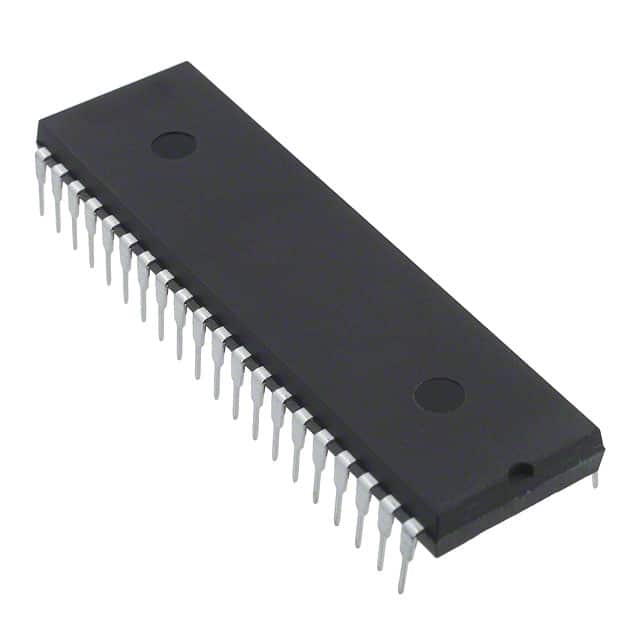

MC908GP32CPE
IC MCU 8BIT 32KB FLASH 40DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MC908GP32CPE is an 8-bit HC08 microcontroller featuring 32KB of FLASH program memory and 512 bytes of RAM. This device operates at speeds up to 8MHz and includes an 8-channel, 8-bit Analog-to-Digital converter. Connectivity options include SCI and SPI interfaces, alongside peripherals such as LVD, POR, and PWM. The MC908GP32CPE is housed in a 40-PDIP package with a through-hole mounting type and operates within a voltage range of 2.7V to 5.5V. Its robust feature set makes it suitable for applications in industrial control, automotive, and consumer electronics. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 40-PDIP |
| Number of I/O | 33 |
| Programmable | Not Verified |
