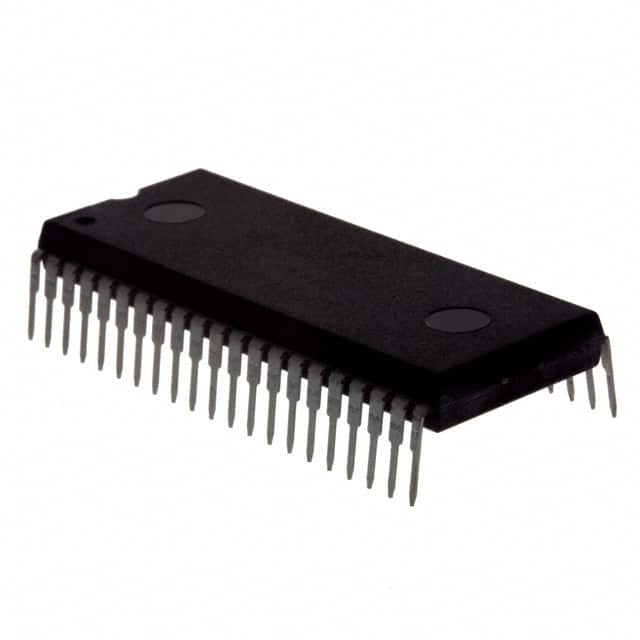

MC908GP32CBE
IC MCU 8BIT 32KB FLASH 42DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 series microcontroller, part number MC908GP32CBE. This 8-bit microcontroller features an HC08 core operating at 8MHz. It provides 32KB of FLASH program memory and 512 bytes of RAM. Connectivity options include SCI and SPI interfaces. Integrated peripherals include LVD, POR, and PWM. The device also incorporates an 8-channel, 8-bit Analog-to-Digital converter. Supplied in a 42-PDIP package for through-hole mounting, it operates within a voltage range of 2.7V to 5.5V and an ambient temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation and automotive systems.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 31 |
| Programmable | Not Verified |
