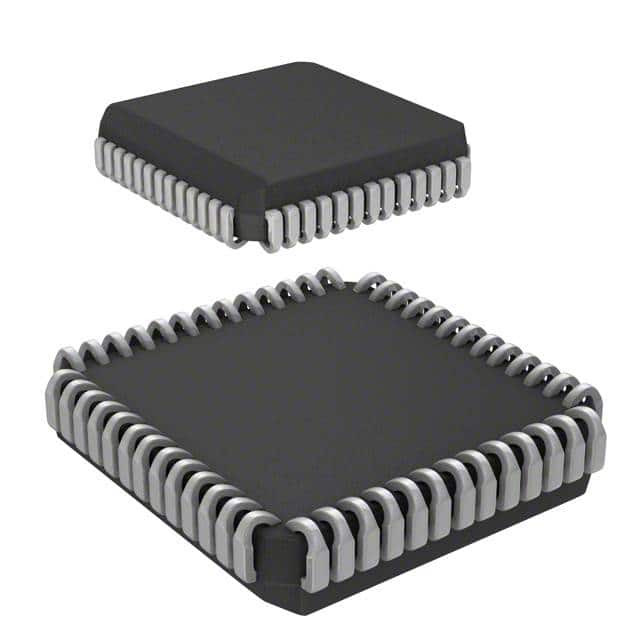

MC908AS60ACFN
IC MCU 8BIT 60KB FLASH 52PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 MC908AS60ACFN microcontroller. This 8-bit device features an HC08 core operating at 8.4MHz, with 60KB of FLASH program memory and 2KB of RAM. Connectivity options include CANbus, SCI, and SPI. It is equipped with 15 channels of 8-bit A/D conversion and 1KB of EEPROM. Peripherals include LVD, POR, and PWM. The device offers 42 I/O lines and is housed in a 52-PLCC surface-mount package. Operating voltage is 4.5V to 5.5V, with an operating temperature range of -40°C to 85°C. Applications include automotive and industrial control systems.
Additional Information
Series: HC08RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 8.4MHz |
| Program Memory Size | 60KB (60K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| Core Processor | HC08 |
| Data Converters | A/D 15x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 52-PLCC (19.1x19.1) |
| Number of I/O | 42 |
| Programmable | Not Verified |
