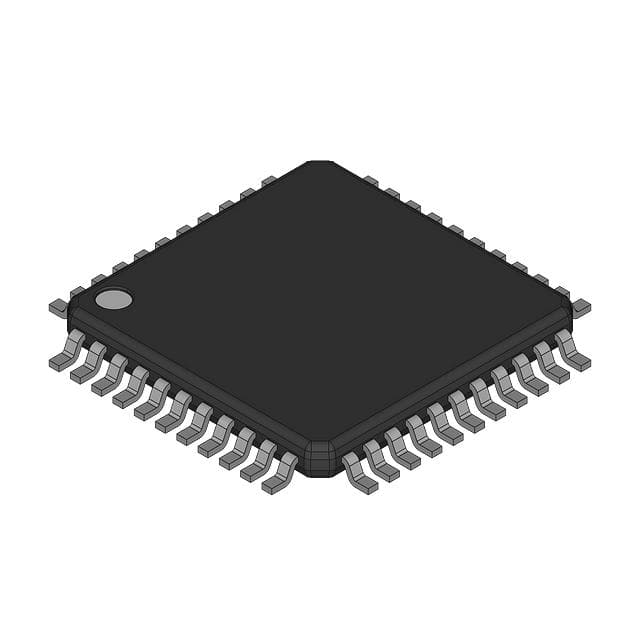

MC908AP64CFBE
IC MCU 8BIT 64KB FLASH 44QFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 Series Microcontroller, part number MC908AP64CFBE. This 8-bit HC08 core microcontroller features 64KB of FLASH program memory and 2KB of RAM. It operates at an 8MHz clock speed and offers a wide supply voltage range of 2.7V to 5.5V. Connectivity options include I2C, IRSCI, SCI, and SPI interfaces. The device is equipped with 8x10-bit Analog-to-Digital converters and includes peripherals such as LED, LVD, POR, and PWM. It provides 32 general-purpose I/O pins and is housed in a 44-QFP (10x10) surface mount package. The operating temperature range is -40°C to 85°C (TA). This component is utilized in applications across automotive, industrial, and consumer electronics sectors.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-QFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, IRSCI, SCI, SPI |
| Peripherals | LED, LVD, POR, PWM |
| Supplier Device Package | 44-QFP (10x10) |
| Number of I/O | 32 |
| Programmable | Not Verified |
