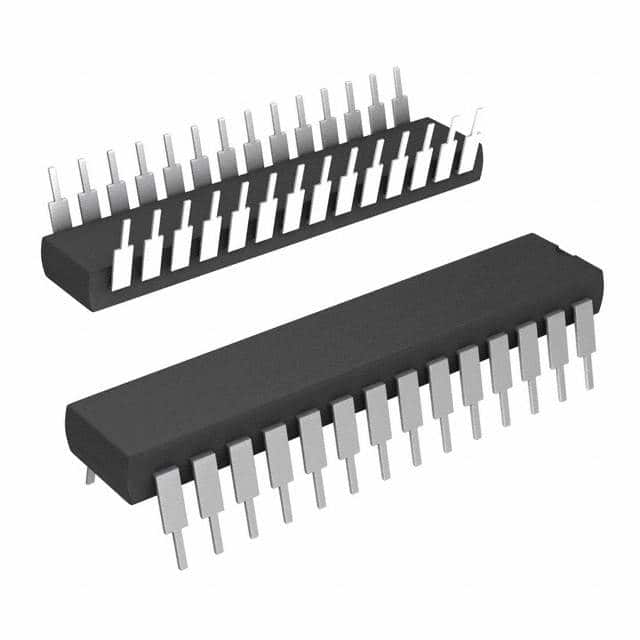

MC705P6ACPE
IC MCU 8BIT 4.5KB OTP 28DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
This NXP USA Inc. HC05 series microcontroller, part number MC705P6ACPE, is an 8-bit device featuring a 2.1MHz HC05 core. It offers 4.5KB of One-Time Programmable (OTP) program memory and 176 bytes of RAM. The component includes an A/D converter with 4x8-bit channels and essential peripherals such as Power-On Reset (POR) and a Watchdog Timer (WDT). Connectivity is provided via SIO. Designed for through-hole mounting, it is housed in a 28-PDIP package. The operating voltage range is 3V to 5.5V, with an operating temperature range of -40°C to 85°C. This microcontroller finds application in industrial automation and consumer electronics.
Additional Information
Series: HC05RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 2.1MHz |
| Program Memory Size | 4.5KB (4.5K x 8) |
| RAM Size | 176 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | HC05 |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SIO |
| Peripherals | POR, WDT |
| Supplier Device Package | 28-PDIP |
| Number of I/O | 21 |
| Programmable | Not Verified |
