MC705P6ACDWE

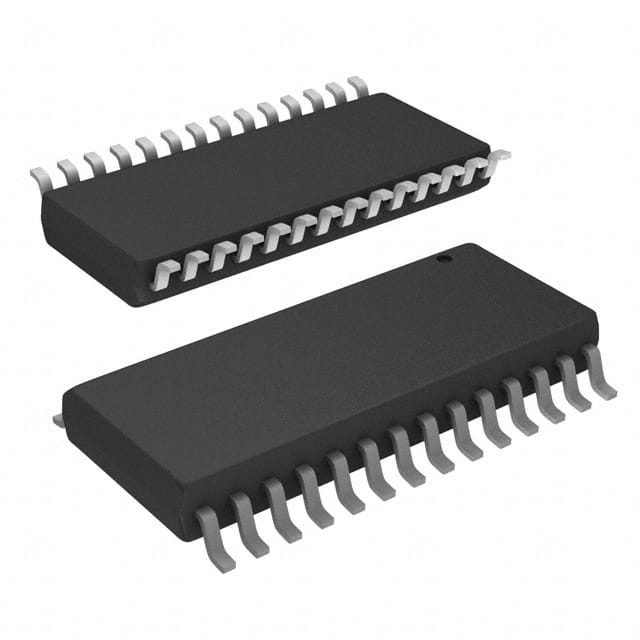

IC MCU 8BIT 4.5KB OTP 28SOICManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. HC05 series microcontroller, part number MC705P6ACDWE, is an 8-bit device featuring a 2.1MHz HC05 core. This surface mount component comes in a 28-SOIC package and offers 4.5KB of OTP program memory and 176 x 8 bytes of RAM. Connectivity is provided via SIO. Integrated peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The device incorporates 4x8-bit A/D converters. It operates within a voltage range of 3V to 5.5V and is specified for an operating temperature range of -40°C to 85°C. This microcontroller is suitable for applications in various industrial and consumer electronics sectors.
Additional Information
Series: HC05RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Speed | 2.1MHz |
| Program Memory Size | 4.5KB (4.5K x 8) |
| RAM Size | 176 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | HC05 |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | SIO |
| Peripherals | POR, WDT |
| Supplier Device Package | 28-SOIC |
| Number of I/O | 21 |
| Programmable | Verified |
