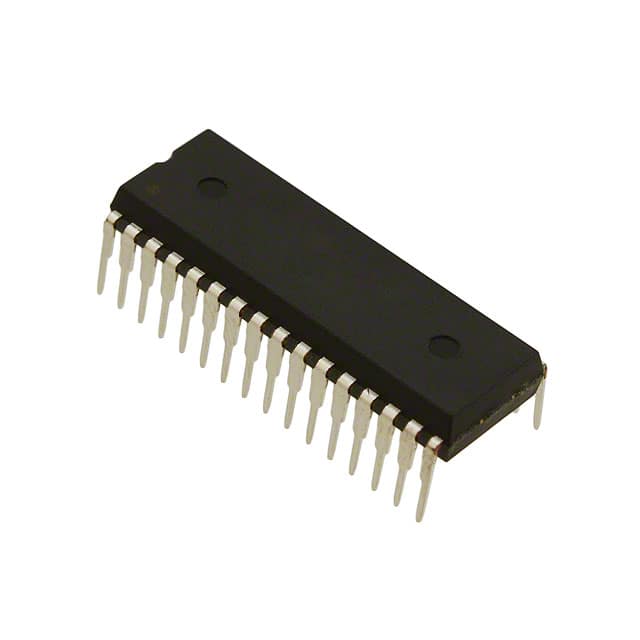

MC68HC908JL8CSP
IC MCU 8BIT 8KB FLASH 32SDIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 series microcontroller, part number MC68HC908JL8CSP. This 8-bit microcontroller features an 8MHz HC08 core, 8KB of FLASH program memory, and 256 bytes of RAM. It includes a 13-channel 8-bit Analog-to-Digital converter and supports SCI connectivity. Peripherals include LED, LVD, POR, and PWM. The device operates from a 2.7V to 5.5V supply and is housed in a 32-SDIP (0.400", 10.16mm) through-hole package. Operating temperature range is -40°C to 85°C. This component is commonly found in industrial and automotive applications.
Additional Information
Series: HC08RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 13x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI |
| Peripherals | LED, LVD, POR, PWM |
| Supplier Device Package | 32-SDIP |
| Number of I/O | 26 |
| Programmable | Not Verified |
