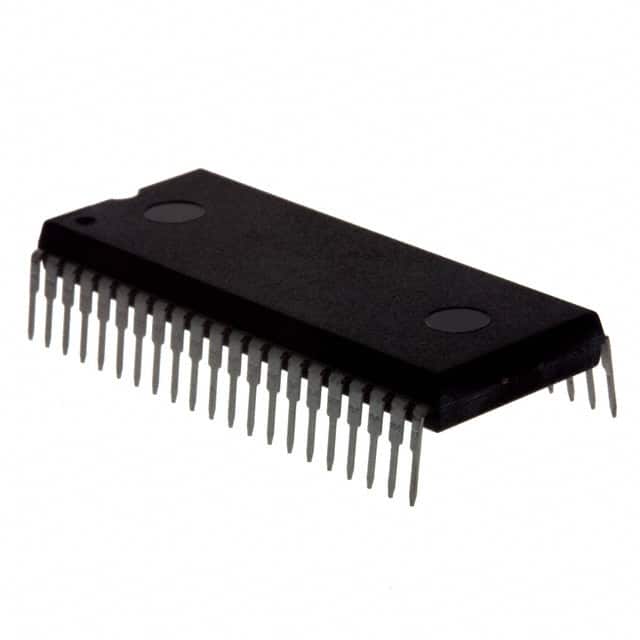

MC68HC908GP32CB
IC MCU 8BIT 32KB FLASH 42DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 series microcontroller, part number MC68HC908GP32CB. This 8-bit HC08 core microcontroller offers 32KB of FLASH program memory and 512 bytes of RAM. It operates at a maximum frequency of 8MHz and features an internal oscillator. Connectivity options include SCI and SPI interfaces. Integrated peripherals include LVD, POR, and PWM. The device also incorporates an 8-bit, 8-channel analog-to-digital converter. With 33 user-programmable I/O lines, this microcontroller is suitable for applications in industrial automation, automotive, and consumer electronics. Packaged in a 42-PDIP through-hole configuration, it operates within an ambient temperature range of -40°C to 85°C and requires a supply voltage of 2.7V to 5.5V.
Additional Information
Series: HC08RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 42-SDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 42-PDIP |
| Number of I/O | 33 |
| Programmable | Not Verified |
