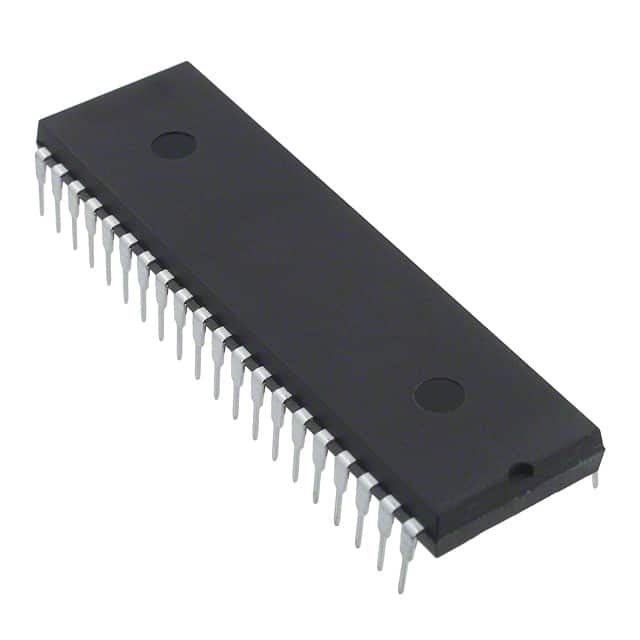

MC68HC705SR3CP
IC MCU 8BIT 3.75KB OTP 40DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC05 series microcontroller, part number MC68HC705SR3CP. This 8-bit, 4MHz HC05 core microcontroller features 3.75KB of One-Time Programmable (OTP) program memory and 192 x 8 bytes of RAM. It includes 4x8-bit Analog-to-Digital converters, 32 I/O lines, and peripherals such as LED and POR. The device operates from a 3V to 5.5V supply and is housed in a 40-PDIP package for through-hole mounting. Operating temperature range is -40°C to 85°C (TA). This component is utilized in industrial and automotive applications requiring robust 8-bit processing capabilities.
Additional Information
Series: HC05RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 3.75KB (3.75K x 8) |
| RAM Size | 192 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | HC05 |
| Data Converters | A/D 4x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | LED, POR |
| Supplier Device Package | 40-PDIP |
| Number of I/O | 32 |
| Programmable | Not Verified |
