MC68HC705J1ACP

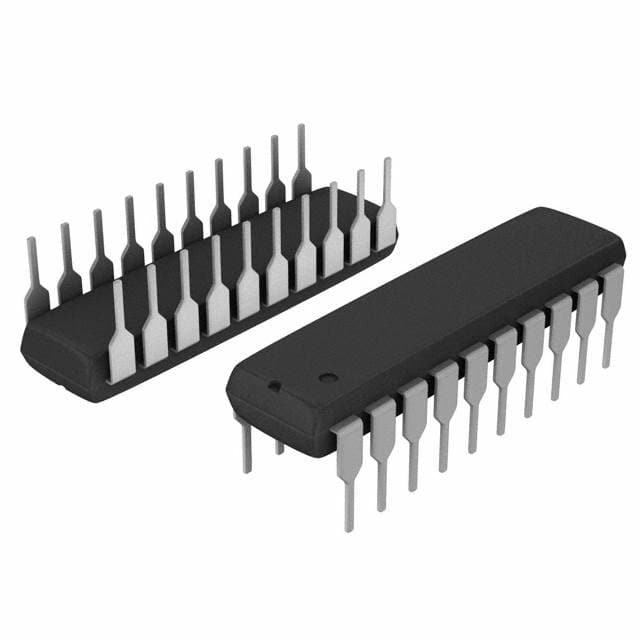

IC MCU 8BIT 1.2KB OTP 20DIPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC05 series microcontroller, part number MC68HC705J1ACP. This 8-bit HC05 core microcontroller operates at 4MHz and features 1.2KB of OTP program memory with 64 bytes of RAM. It is housed in a 20-DIP (0.300", 7.62mm) through-hole package. The device includes a Power-On Reset (POR) and Watchdog Timer (WDT) peripheral. With 14 general-purpose I/O pins and a voltage supply range of 3V to 5.5V, this component is suitable for applications in industrial automation and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: HC05RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 4MHz |
| Program Memory Size | 1.2KB (1.2K x 8) |
| RAM Size | 64 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | HC05 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Supplier Device Package | 20-DIP |
| Number of I/O | 14 |
| Programmable | Not Verified |
