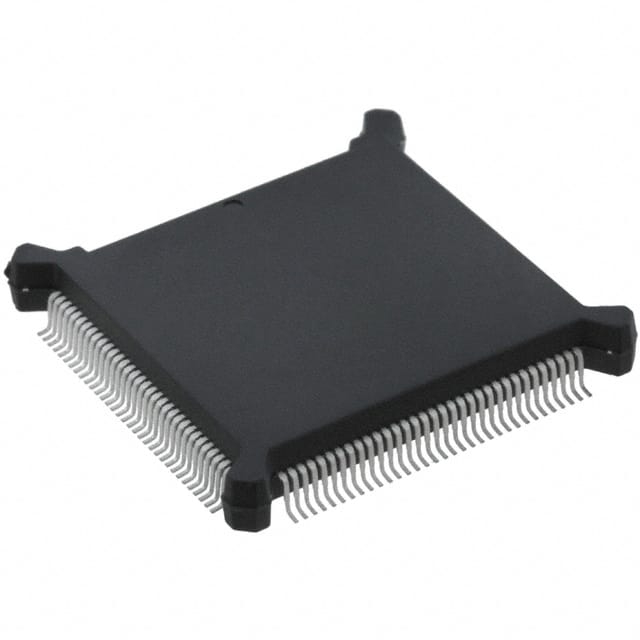

MC68HC16Z1VEH16
IC MCU 16BIT ROMLESS 132PQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC16 series microcontroller, part number MC68HC16Z1VEH16. This 16-bit CPU16 core microcontroller operates at 16MHz. It features a ROMless architecture and 1K x 8 RAM. Connectivity options include EBI/EMI, SCI, and SPI. On-chip peripherals include Power-on Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). It integrates an 8-channel, 10-bit Analog-to-Digital (A/D) converter. The device is housed in a 132-PQFP (24.13x24.13) surface-mount package. Operating voltage range is 2.7V to 5.5V with an operating temperature range of -40°C to 105°C. This component is suitable for applications in automotive and industrial control systems.
Additional Information
Series: HC16RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 132-BQFP Bumpered |
| Mounting Type | Surface Mount |
| Speed | 16MHz |
| Program Memory Size | - |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | CPU16 |
| Data Converters | A/D 8x10b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 132-PQFP (24.13x24.13) |
| Number of I/O | 16 |
| Programmable | Not Verified |
