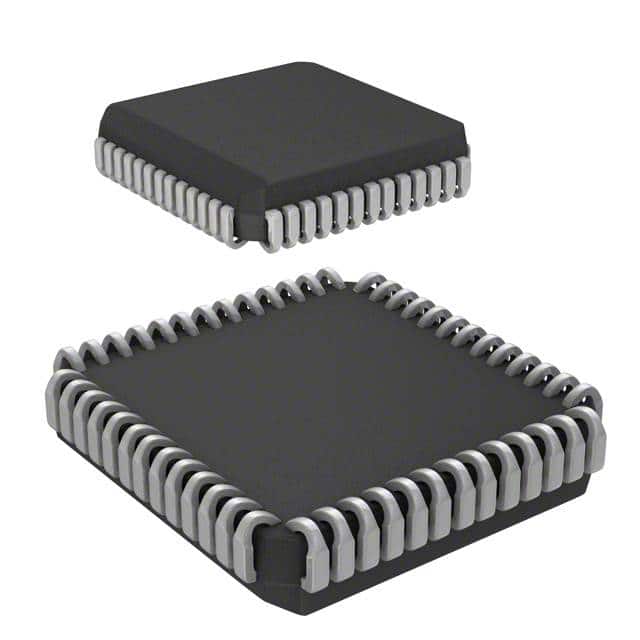

MC68HC11E1CFNE3R
IC MCU 8BIT ROMLESS 52PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 microcontroller IC, featuring an 8-bit HC11 core processor. This ROMless device operates at 3MHz and includes 512 x 8 bits of RAM and 512 x 8 bits of EEPROM. Connectivity options include SCI and SPI interfaces. The component is equipped with an 8x8b A/D data converter and peripherals such as POR and WDT. With 38 I/O lines, it is housed in a 52-PLCC (19.1x19.1) surface mount package. The operating temperature range is -40°C to 85°C (TA). This component is commonly utilized in industrial automation and automotive applications.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 3MHz |
| Program Memory Size | - |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-PLCC (19.1x19.1) |
| Number of I/O | 38 |
| Programmable | Not Verified |
