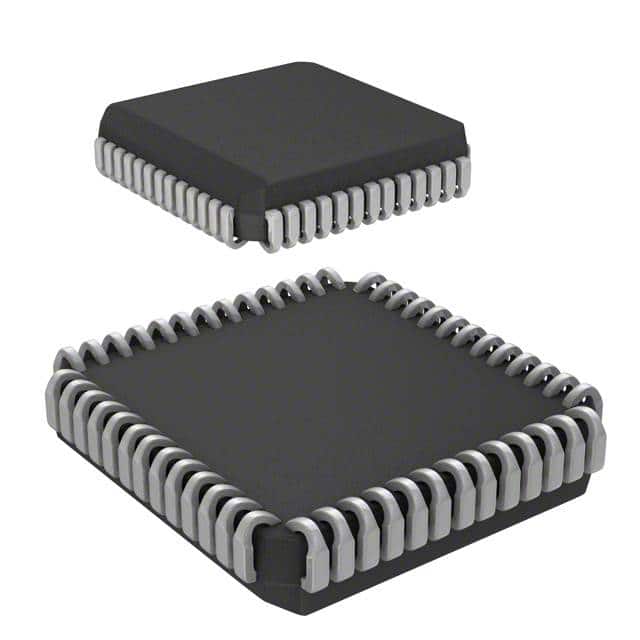

MC68HC11E1CFNE2R
IC MCU 8BIT ROMLESS 52PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 Series microcontroller, part number MC68HC11E1CFNE2R. This 8-bit HC11 core microcontroller operates at 3MHz and features a ROMless architecture. It includes 512 x 8 bytes of RAM and 512 x 8 bytes of EEPROM. Connectivity options include SCI and SPI interfaces. The device is equipped with an 8x8-bit A/D converter and peripherals such as POR (Power-On Reset) and WDT (Watchdog Timer). It is housed in a 52-PLCC (19.1x19.1) surface-mount package and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics. The MC68HC11E1CFNE2R is supplied on tape and reel.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 3MHz |
| Program Memory Size | - |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-PLCC (19.1x19.1) |
| Number of I/O | 38 |
| Programmable | Not Verified |
