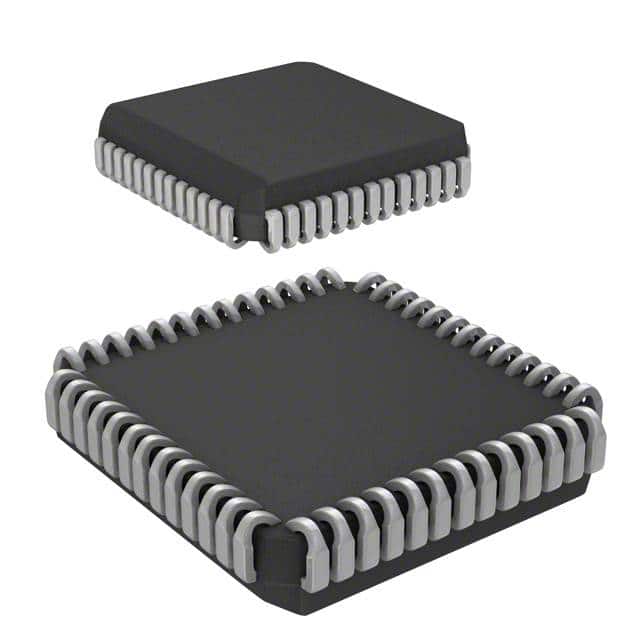

MC68HC11E0CFNE2
IC MCU 8BIT ROMLESS 52PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 microcontroller, part number MC68HC11E0CFNE2, offers an 8-bit HC11 core processor operating at 2MHz. This ROMless device features 512 x 8 bytes of RAM and 38 general-purpose I/O pins. Connectivity includes SCI and SPI interfaces, complemented by an 8-channel 8-bit Analog-to-Digital converter. Integrated peripherals include Power-On Reset (POR) and Watchdog Timer (WDT). The MC68HC11E0CFNE2 is housed in a 52-PLCC (19.1x19.1) surface mount package and operates within a temperature range of -40°C to 85°C. This component finds application in automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 2MHz |
| Program Memory Size | - |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-PLCC (19.1x19.1) |
| Number of I/O | 38 |
| Programmable | Not Verified |
