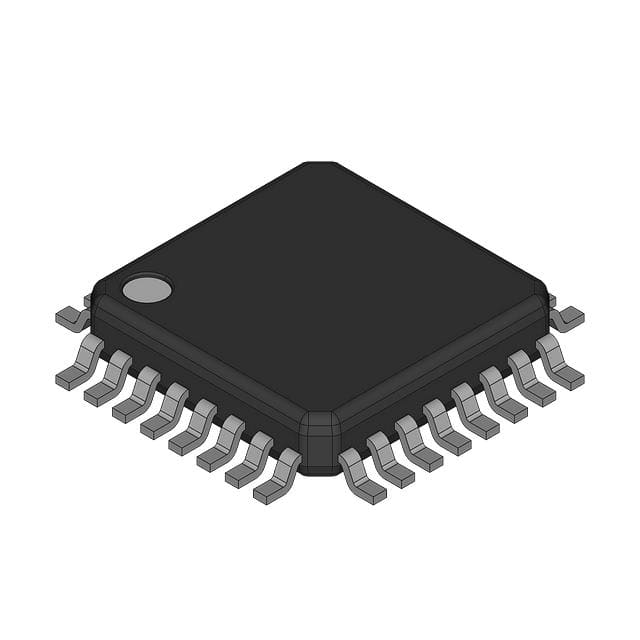

MC68908GZ8CFJE
IC MCU 8BIT 8KB FLASH 32LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 series microcontroller, part number MC68908GZ8CFJE. This 8-bit MCU features an 8MHz HC08 core with 8KB of FLASH program memory and 1KB of RAM. On-chip peripherals include LVD, POR, and PWM. Connectivity options include CANbus, LINbus, SCI, and SPI. It is equipped with 8x10-bit A/D converters and provides 21 general purpose I/O pins. Designed for surface mounting, it comes in a 32-LQFP (7x7) package with an operating temperature range of -40°C to 85°C. This component is utilized in automotive and industrial applications.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 32-LQFP (7x7) |
| Number of I/O | 21 |
| Programmable | Not Verified |
Request a Quote
