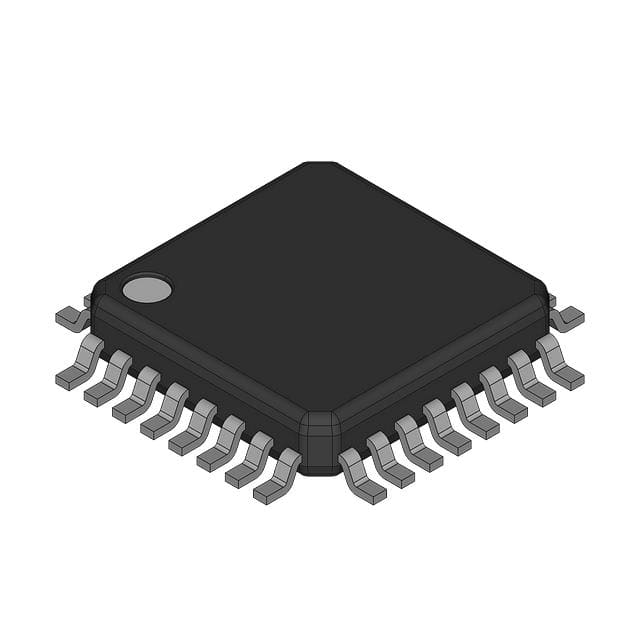

MC68908GZ16CFJE
IC MCU 8BIT 16KB FLASH 32LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC08 series microcontroller, part number MC68908GZ16CFJE. This 8-bit microcontroller features a 16KB FLASH program memory and 1KB RAM. It operates at a maximum speed of 8MHz and includes an 8-channel, 10-bit Analog-to-Digital converter. Connectivity options include CANbus, LINbus, SCI, and SPI interfaces. The device is housed in a 32-LQFP (7x7) surface-mount package. Peripherals include LVD, POR, and PWM. This component is suitable for applications in automotive and industrial automation. It operates within a temperature range of -40°C to 85°C and requires a supply voltage from 3V to 5.5V.
Additional Information
Series: HC08RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Speed | 8MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 1K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HC08 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | CANbus, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM |
| Supplier Device Package | 32-LQFP (7x7) |
| Number of I/O | 21 |
| Programmable | Verified |
