MC68711E20MFNE2

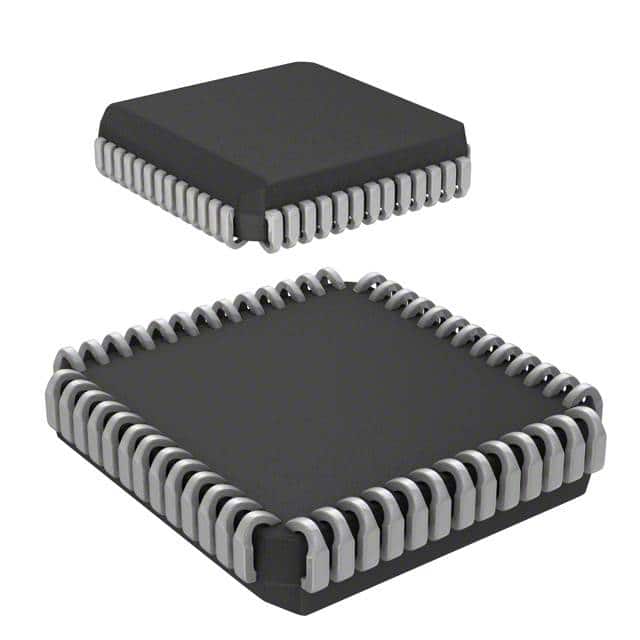

IC MCU 8BIT 20KB OTP 52PLCCManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 microcontroller, part number MC68711E20MFNE2, features an 8-bit HC11 core processor operating at 4MHz. This device provides 20KB of One-Time Programmable (OTP) program memory and 768 bytes of RAM. Integrated peripherals include Power-On Reset (POR) and a Watchdog Timer (WDT). For communication, it supports SCI and SPI interfaces. Analog capabilities are provided by an 8-channel, 8-bit Analog-to-Digital converter. The device also includes 512 bytes of EEPROM. Housed in a 52-PLCC (J-Lead) surface-mount package, it operates within a voltage range of 4.5V to 5.5V and an ambient temperature range of -40°C to 125°C. This component is commonly utilized in industrial automation and consumer electronics applications.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 52-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 4MHz |
| Program Memory Size | 20KB (20K x 8) |
| RAM Size | 768 x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-PLCC (19.1x19.1) |
| Number of I/O | 38 |
| Programmable | Not Verified |
