MC68332AVEH20

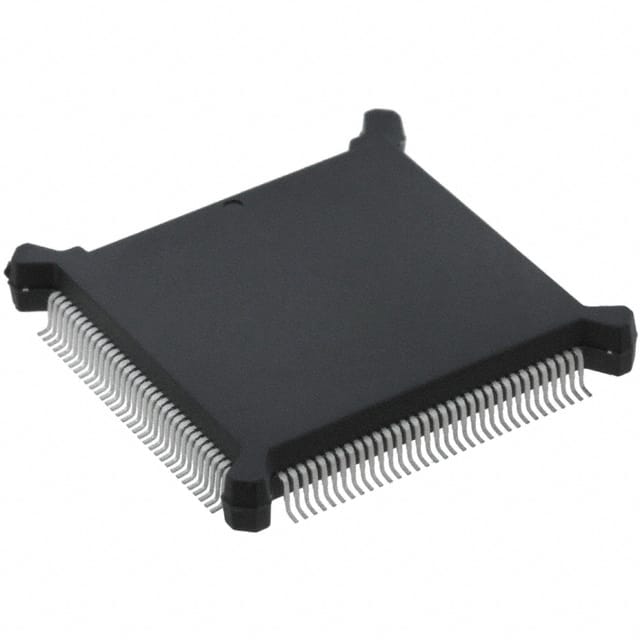

IC MCU 32BIT ROMLESS 132PQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. M683xx Series MC68332AVEH20 is a 32-bit, single-core microcontroller featuring a ROMless architecture. This CPU32-based device operates at 20MHz and includes 2KB of RAM. Connectivity options are extensive, supporting EBI/EMI, SCI, SPI, and UART/USART interfaces. Integrated peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). The component is housed in a 132-PQFP (24.13x24.13) package for surface mounting. It is designed for operation within an ambient temperature range of -40°C to 105°C and requires a supply voltage between 4.5V and 5.5V. This microcontroller finds application in automotive control systems and industrial automation.
Additional Information
Series: M683xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 132-BQFP Bumpered |
| Mounting Type | Surface Mount |
| Speed | 20MHz |
| Program Memory Size | - |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | CPU32 |
| Data Converters | - |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 132-PQFP (24.13x24.13) |
| Number of I/O | 15 |
| Programmable | Not Verified |
