MC56F84786VLK

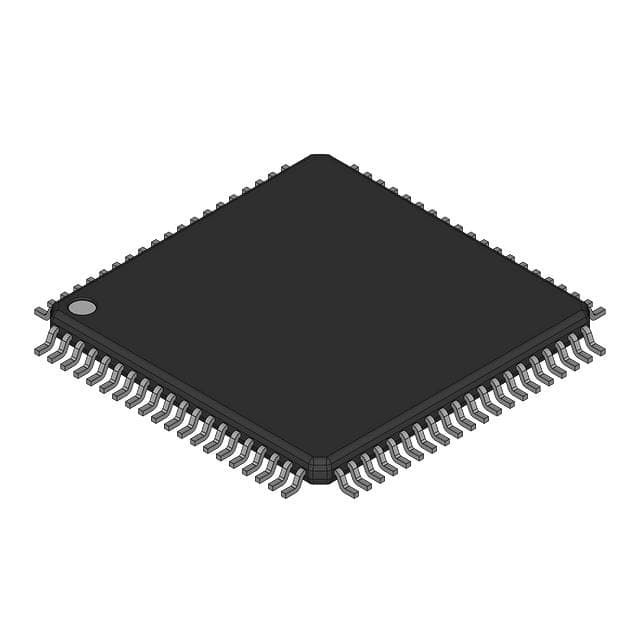

IC MCU 32BIT 256KB FLASH 80FQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 56F8xxx series microcontroller, part number MC56F84786VLK, features a 32-bit single-core 56800EX processor operating at 100MHz. This device offers 256KB of FLASH program memory and 32KB of RAM, along with 2KB of EEPROM. Connectivity options include CANbus, I2C, LINbus, SCI, and SPI. The MC56800EX core supports peripherals such as Brown-out Detect/Reset, DMA, LVD, POR, PWM, and WDT. It includes a 16-channel 12-bit ADC and a 10-channel 16-bit ADC, as well as a 12-bit DAC. Specified for a surface mount application, the component is housed in an 80-FQFP (12x12) package. Operating temperature range is -40°C to 105°C (TA), with a supply voltage of 3V to 3.6V. This microcontroller is suitable for applications in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Speed | 100MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 32K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| Core Processor | 56800EX |
| Data Converters | A/D 16x12b, 10x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT |
| Supplier Device Package | 80-FQFP (12x12) |
| Number of I/O | 68 |
| Programmable | Not Verified |
