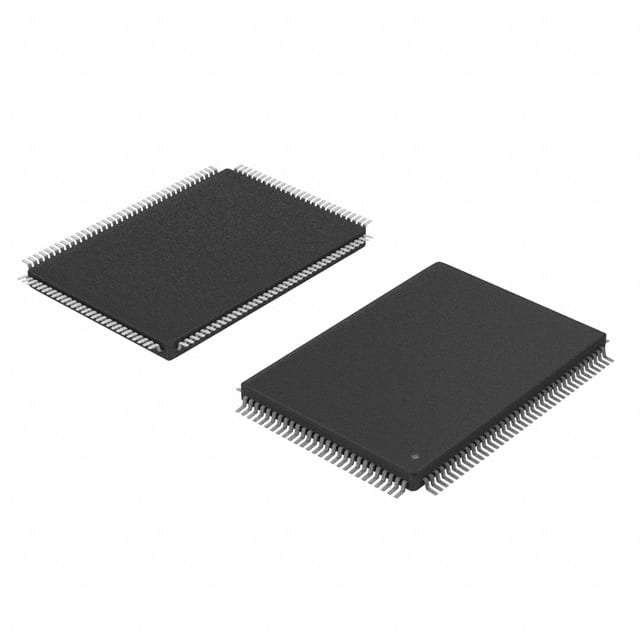

MC56F8365VFGE
IC MCU 16BIT 512KB FLASH 128LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. presents the MC56F8365VFGE, a 16-bit microcontroller from the 56F8xxx series. This device features a 56800E core operating at 60MHz, with 512KB (256K x 16) of FLASH program memory and 18K x 16 of RAM. Connectivity options include CANbus, EBI/EMI, SCI, and SPI interfaces. The MC56F8365VFGE incorporates a 16-channel, 12-bit Analog-to-Digital converter, along with peripherals such as Power-on Reset (POR), Pulse Width Modulation (PWM), a temperature sensor, and a Watchdog Timer (WDT). With 49 I/O pins, this microcontroller is suitable for surface-mount applications and is supplied in a 128-LQFP (14x20) package. The operating temperature range is -40°C to 105°C (TA), and it operates from a 2.25V to 3.6V supply. This component finds application in automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 512KB (256K x 16) |
| RAM Size | 18K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 16x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 128-LQFP (14x20) |
| Number of I/O | 49 |
| Programmable | Not Verified |
