MC56F8365MFGE

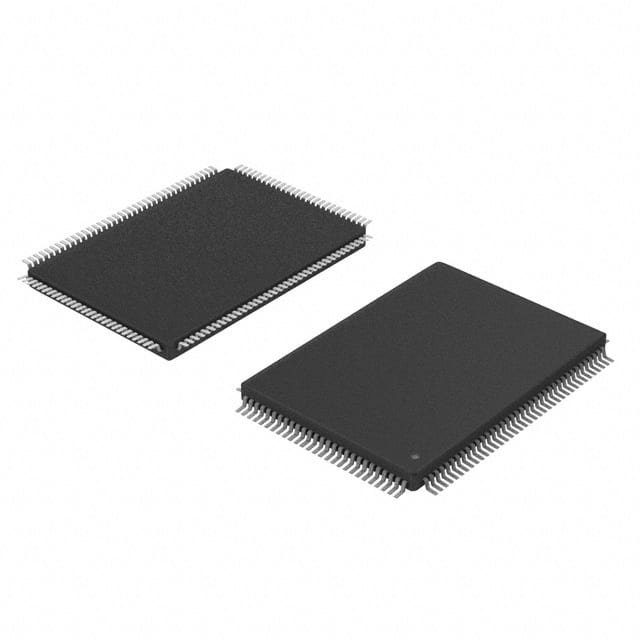

IC MCU 16BIT 512KB FLASH 128LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 56F8xxx Series MC56F8365MFGE microcontroller featuring a 16-bit 56800E core operating at 60MHz. This device offers 512KB of FLASH program memory (256K x 16) and 18KB of RAM. Integrated data conversion capabilities include 16 channels of 12-bit A/D converters. Connectivity options encompass CANbus, EBI/EMI, SCI, and SPI interfaces. Peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), a temperature sensor, and a Watchdog Timer (WDT). The component is housed in a 128-LQFP (14x20) surface mount package. It operates within a voltage range of 2.25V to 3.6V and is rated for an operating temperature of -40°C to 125°C. This microcontroller is suitable for applications in automotive, industrial automation, and motor control sectors.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 512KB (256K x 16) |
| RAM Size | 18K x 16 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 16x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 128-LQFP (14x20) |
| Number of I/O | 49 |
| Programmable | Not Verified |
