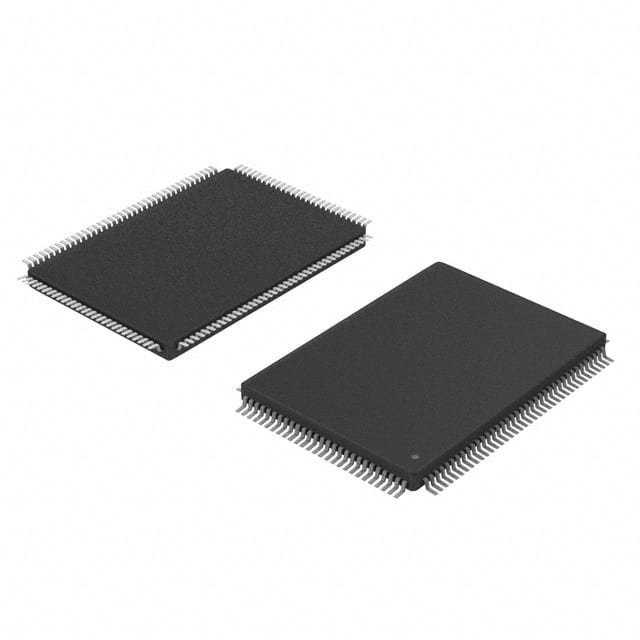

MC56F8345VFGE
IC MCU 16BIT 128KB FLASH 128LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
56800E 56F8xxx Microcontroller IC 16-Bit 60MHz 128KB (64K x 16) FLASH 128-LQFP (14x20)
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Speed | 60MHz |
| Program Memory Size | 128KB (64K x 16) |
| RAM Size | 6K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 16x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Supplier Device Package | 128-LQFP (14x20) |
| Number of I/O | 49 |
| Programmable | Not Verified |
