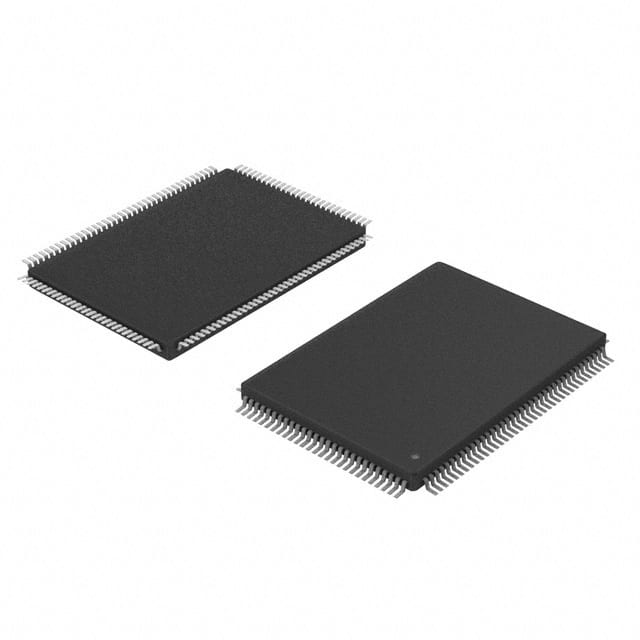

MC56F8165VFGE
IC MCU 16BIT 512KB FLASH 128LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 56F8xxx Series microcontroller MC56F8165VFGE is a 16-bit processing unit operating at 40MHz. This device features 512KB of FLASH program memory (organized as 256K x 16) and 16KB of RAM. Connectivity options include EBI/EMI, SCI, and SPI interfaces. On-chip peripherals encompass Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Analog-to-digital conversion is supported by 16 channels, each with a 12-bit resolution. The MC56F8165VFGE is housed in a 128-LQFP package suitable for surface mounting and operates across a temperature range of -40°C to 105°C. It requires a supply voltage between 2.25V and 3.6V. This component is utilized in applications such as motor control and power conversion.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 512KB (256K x 16) |
| RAM Size | 16K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 16x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.25V ~ 3.6V |
| Connectivity | EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 128-LQFP (14x20) |
| Number of I/O | 49 |
| Programmable | Not Verified |
