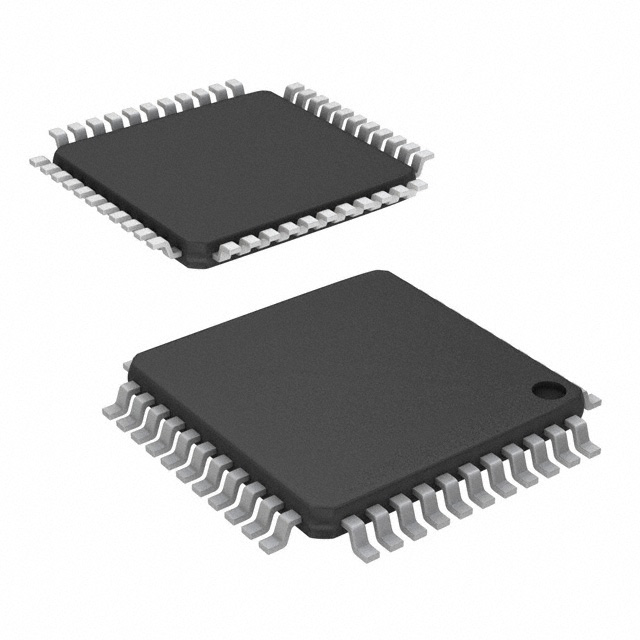

MC56F8035VLD
IC MCU 16BIT 64KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 56F8xxx series microcontroller, part number MC56F8035VLD. This 16-bit device features a 56800E core operating at 32MHz. It offers 64KB (32K x 16) of FLASH program memory and 4KB x 16 of RAM. Peripherals include Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Connectivity options consist of I2C, LINbus, SCI, and SPI. The integrated analog front-end includes 8x12-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters. With 35 general-purpose I/O pins, this microcontroller is suitable for surface mount applications. The package is a 44-LQFP (10x10), and it operates within a temperature range of -40°C to 105°C. Typical applications include motor control and industrial automation.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 64KB (32K x 16) |
| RAM Size | 4K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 35 |
| Programmable | Not Verified |
