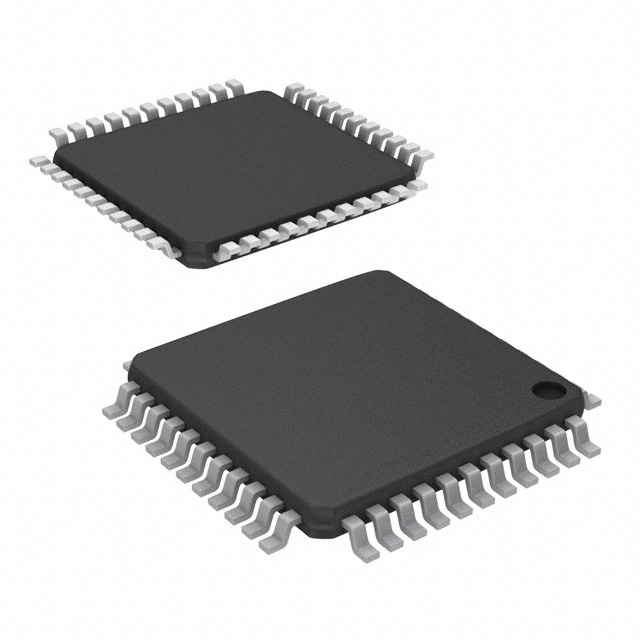

MC56F8025VLDR
IC MCU 16BIT 32KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. MC56F8025VLDR is a 16-bit microcontroller from the 56F8xxx series, featuring the 56800E core. This device offers 32KB of FLASH program memory with a 16K x 16 configuration, complemented by 2KB of RAM. Operating at a maximum speed of 32MHz, it includes integrated peripherals such as Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). Data conversion capabilities are provided by an 8-channel 12-bit Analog-to-Digital (A/D) converter and two 12-bit Digital-to-Analog (D/A) converters. Connectivity options include I2C, LINbus, SCI, and SPI interfaces. The MC56800E architecture is well-suited for applications in industrial automation, automotive control, and power management systems. This component is supplied in a 44-LQFP (10x10) package suitable for surface mounting and operates within a temperature range of -40°C to 105°C. The part is provided in Tape & Reel packaging.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 32KB (16K x 16) |
| RAM Size | 2K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 35 |
| Programmable | Not Verified |
