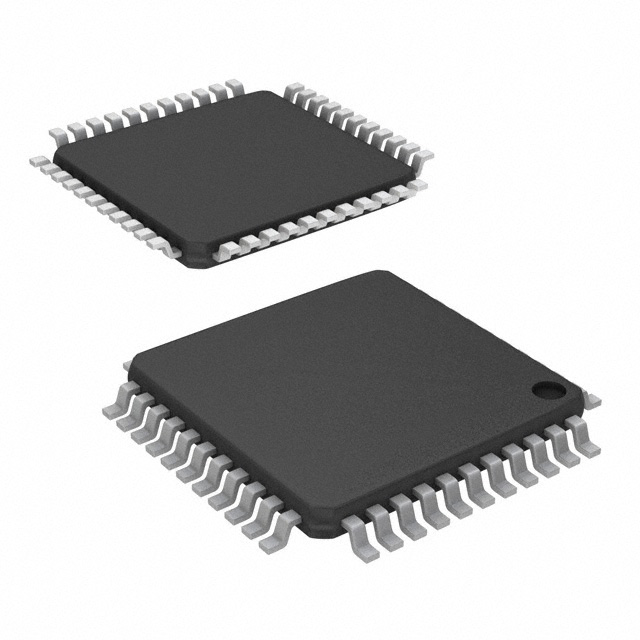

MC56F8025VLD
IC MCU 16BIT 32KB FLASH 44LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. 56F8xxx Series microcontroller, part number MC56F8025VLD, features a 16-bit 56800E core operating at 32MHz. This device offers 32KB of FLASH program memory organized as 16K x 16, complemented by 2K x 16 of RAM. On-chip peripherals include I2C, LINbus, SCI, and SPI connectivity, alongside an 8x12-bit Analog-to-Digital converter and 2x12-bit Digital-to-Analog converters. Additional features include Power-On Reset (POR), Pulse Width Modulation (PWM) generation, and a Watchdog Timer (WDT). The MC56F8025VLD is supplied in a 44-LQFP (10x10) surface mount package, suitable for operation across a -40°C to 105°C ambient temperature range. This component is commonly utilized in industrial automation and automotive control systems.
Additional Information
Series: 56F8xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 44-LQFP |
| Mounting Type | Surface Mount |
| Speed | 32MHz |
| Program Memory Size | 32KB (16K x 16) |
| RAM Size | 2K x 16 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 56800E |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Supplier Device Package | 44-LQFP (10x10) |
| Number of I/O | 35 |
| Programmable | Not Verified |
