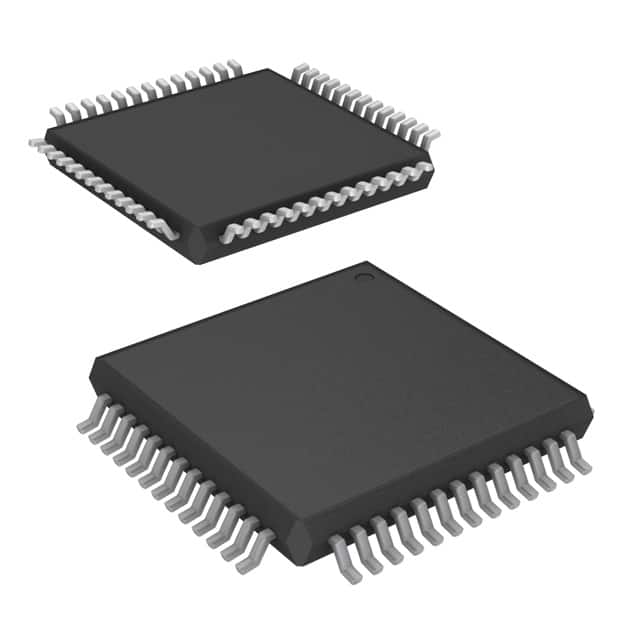

MC11E1CPBE2
IC MCU 8BIT ROMLESS 52TQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. HC11 Microcontroller, MC11E1CPBE2. This 8-bit microcontroller features a ROMless architecture with 512 x 8 bytes of RAM and 512 x 8 bytes of EEPROM. Operating at 2MHz, it includes an 8-channel, 8-bit Analog-to-Digital converter and a flexible set of peripherals including Power-On Reset (POR) and Watchdog Timer (WDT). Connectivity options are provided via SCI and SPI interfaces. The device offers 38 General Purpose Input/Output pins. It is supplied in a 52-TQFP (10x10) surface mount package and operates within a temperature range of -40°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: HC11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 52-LQFP |
| Mounting Type | Surface Mount |
| Speed | 2MHz |
| Program Memory Size | - |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | 512 x 8 |
| Core Processor | HC11 |
| Data Converters | A/D 8x8b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | SCI, SPI |
| Peripherals | POR, WDT |
| Supplier Device Package | 52-TQFP (10x10) |
| Number of I/O | 38 |
| Programmable | Not Verified |
