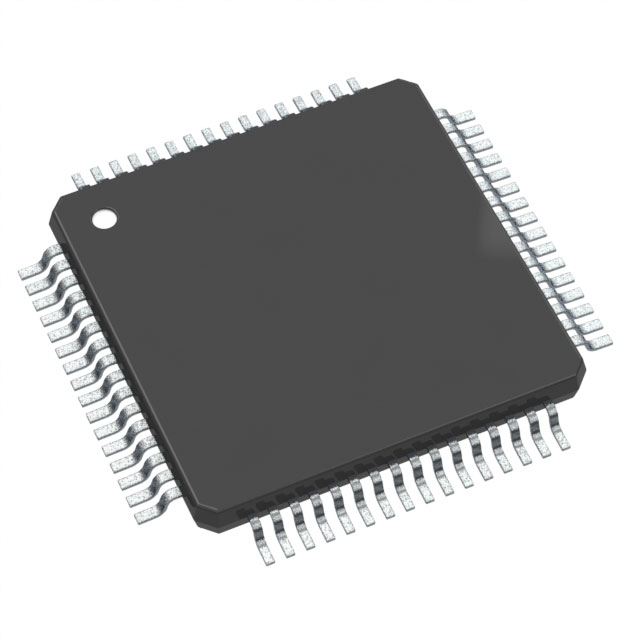

LPC5536JBD64K
IC MCU 32BIT 256KB FLASH 64HTQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M33 - Microcontroller IC 32-Bit Single-Core 150MHz 256KB (256K x 8) FLASH 64-HTQFP (10x10)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 150MHz |
| Program Memory Size | 256KB (256K x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M33 |
| Data Converters | A/D 13x16b; D/A 1x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | CAN FD, Flexcomm, I2C, I3C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 64-HTQFP (10x10) |
| Grade | - |
| Number of I/O | 39 |
| Programmable | Not Verified |
| Qualification | - |
