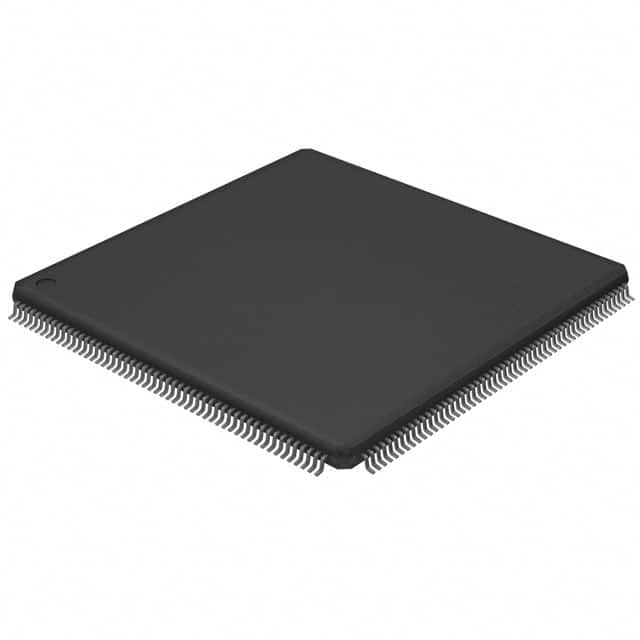

LPC54616J512BD208E
IC MCU 32BIT 512KB FLASH 208LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC546xx series microcontroller, part number LPC54616J512BD208E. This 32-bit, single-core ARM Cortex-M4 processor operates at 180MHz and features 512KB of FLASH program memory with 200KB of RAM. The component includes 12x12-bit Analog-to-Digital converters and 16KB of EEPROM. Connectivity options include CANbus, Ethernet, I2C, SPI, UART/USART, and USB. Peripherals such as DMA, I2S, and PWM are integrated. The device is supplied in a 208-LQFP (28x28) surface mount package and operates within a temperature range of -40°C to 105°C. This component is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: LPC546xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 180MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 200K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 12x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Number of I/O | 171 |
| Programmable | Not Verified |
