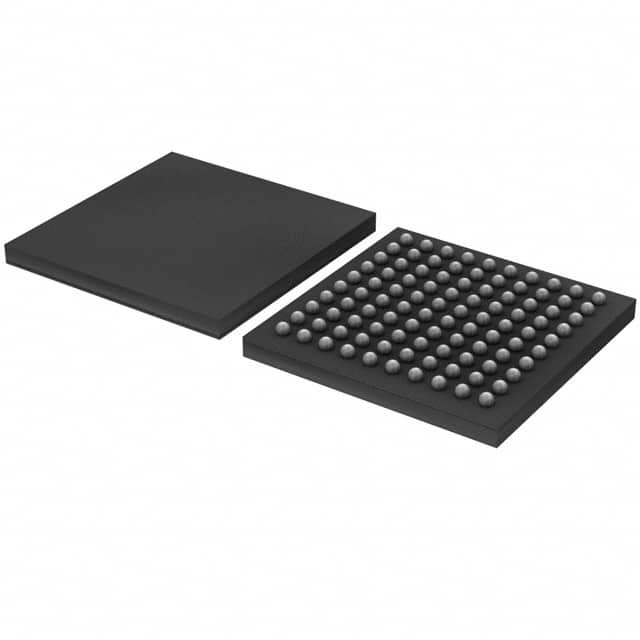

LPC43S67JET100E
IC MCU 32BIT 1MB FLASH 100TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
The NXP USA Inc. LPC43S67JET100E is a 32-bit dual-core microcontroller from the LPC43xx series. Featuring ARM Cortex-M4 and Cortex-M0 cores operating at up to 204MHz, this device offers 1MB of FLASH program memory and 154KB of RAM. Connectivity options include CANbus, Ethernet, I2C, SPI, UART, and USB. The LPC43S67JET100E also incorporates a 16-bit A/D converter with 10-bit resolution and a 10-bit D/A converter, along with a 16KB EEPROM. Peripherals such as DMA, I2S, and WDT are integrated. This surface-mount component is housed in a 100-TFBGA (9x9) package and operates within a temperature range of -40°C to 105°C. It finds application in industrial automation, automotive, and consumer electronics.
Additional Information
Series: LPC43xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 204MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 154K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| Core Processor | ARM® Cortex®-M4/M0 |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, MMC/SD, QEI, SPI, SSI, SSP, UART/USART, USB, USB OT |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 100-TFBGA (9x9) |
| Number of I/O | 49 |
| Programmable | Not Verified |
