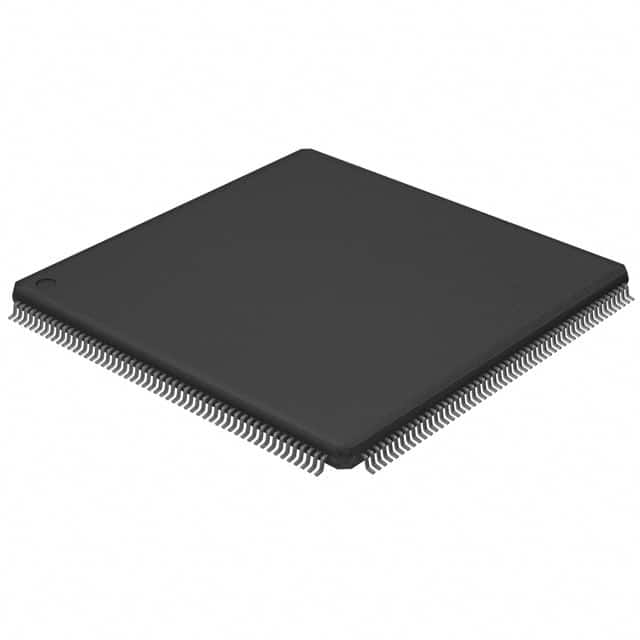

LPC4357JBD208E
IC MCU 32BIT 1MB FLASH 208LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC43xx Series microcontroller, part number LPC4357JBD208E. This 32-bit dual-core microcontroller features ARM Cortex-M4 and Cortex-M0 processors operating at up to 204MHz. It offers 1MB of FLASH program memory and 136KB of RAM. Connectivity options include CANbus, Ethernet, I2C, SPI, UART/USART, and USB OTG. Integrated peripherals include DMA, I2S, and motor control PWM. The device is housed in a 208-LQFP (28x28) surface-mount package. Applications span industrial automation, automotive, and consumer electronics. Operating temperature range is -40°C to 105°C.
Additional Information
Series: LPC43xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 204MHz |
| Program Memory Size | 1MB (1M x 8) |
| RAM Size | 136K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| Core Processor | ARM® Cortex®-M4/M0 |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, Motor Control PWM, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Number of I/O | 142 |
| Programmable | Not Verified |
