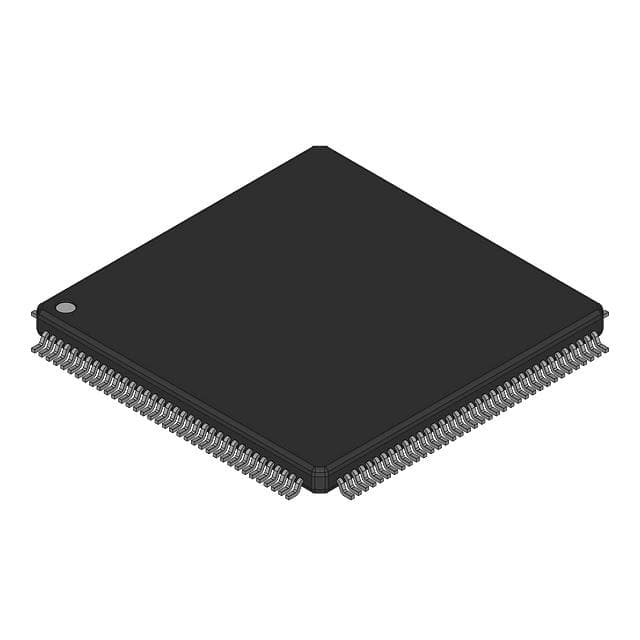

LPC4315JBD144551
IC MCU 32BIT 768KB FLASH 144LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
ARM® Cortex®-M4/M0 LPC43xx Microcontroller IC 32-Bit Dual-Core 204MHz 768KB (768K x 8) FLASH 144-LQFP (20x20)
Additional Information
Series: LPC43xxRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Speed | 204MHz |
| Program Memory Size | 768KB (768K x 8) |
| RAM Size | 136K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| Core Processor | ARM® Cortex®-M4/M0 |
| Data Converters | A/D 8x10b; D/A 1x10b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT |
| Supplier Device Package | 144-LQFP (20x20) |
| Number of I/O | 83 |
| Programmable | Not Verified |
