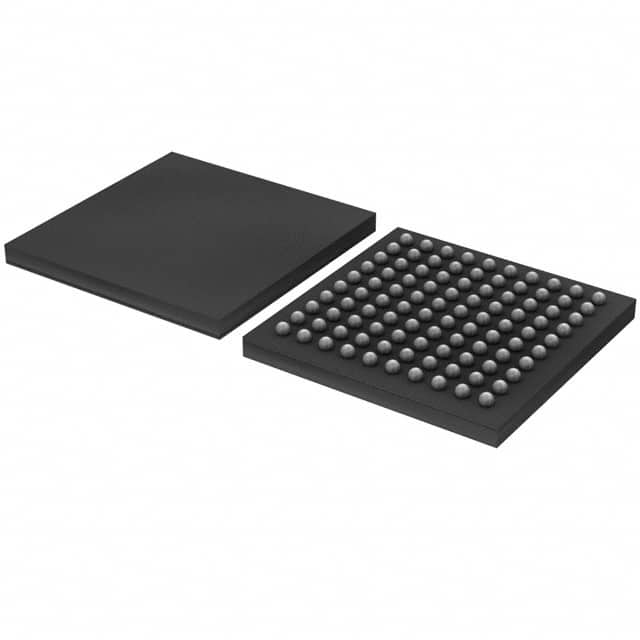

LPC4313JET100E
IC MCU 32BIT 512KB FLSH 100TFBGAManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC43xx series microcontroller, part number LPC4313JET100E. This 32-bit dual-core microcontroller features ARM Cortex-M4 and Cortex-M0 processors operating at up to 204MHz. It offers 512KB of FLASH program memory and 104KB of RAM, along with 16KB of EEPROM. Connectivity options include CANbus, EBI/EMI, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, and UART/USART. Integrated peripherals include Brown-out Detect/Reset, DMA, I2S, POR, and WDT. Data conversion capabilities include 4x10-bit ADCs and a 1x10-bit DAC. The device is packaged in a 100-TFBGA (9x9) for surface mounting and operates from 2.2V to 3.6V with an ambient temperature range of -40°C to 105°C. This component is suitable for applications in industrial automation, automotive, and consumer electronics.
Additional Information
Series: LPC43xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TFBGA |
| Mounting Type | Surface Mount |
| Speed | 204MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 104K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| Core Processor | ARM® Cortex®-M4/M0 |
| Data Converters | A/D 4x10b; D/A 1x10b |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, WDT |
| Supplier Device Package | 100-TFBGA (9x9) |
| Number of I/O | 49 |
| Programmable | Not Verified |
