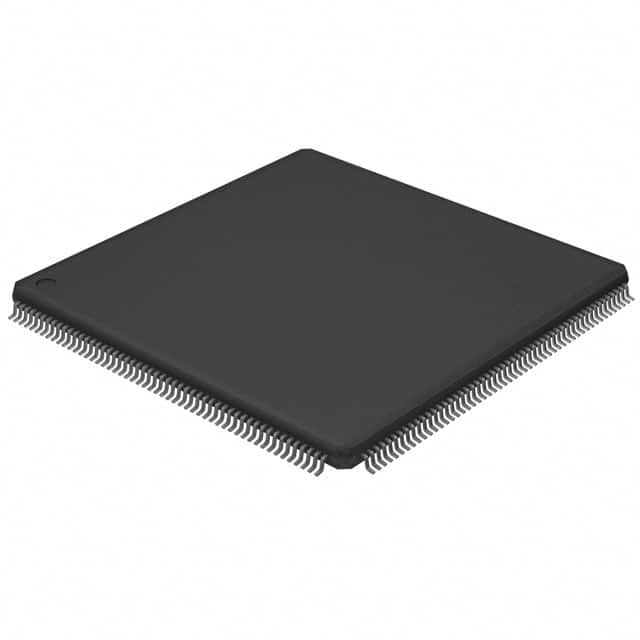

LPC4088FBD208,551
IC MCU 32BIT 512KB FLASH 208LQFPManufacturer: NXP USA Inc.
Categories: Microcontrollers
Quality Control: Learn More
NXP USA Inc. LPC40xx series microcontroller, part number LPC4088FBD208-551. This 32-bit single-core ARM Cortex-M4 processor operates at 120MHz, featuring 512KB of FLASH program memory and 96KB of RAM. The device includes on-chip peripherals such as DMA, PWM, I2S, and a watchdog timer. Connectivity options are extensive, supporting CANbus, Ethernet, I2C, USB, UART, SPI, and more. It also incorporates 8x12-bit ADCs and a 1x10-bit DAC. The 208-LQFP (28x28) package is designed for surface mounting. Operating temperature range is -40°C to 85°C. This component is commonly utilized in industrial automation, automotive applications, and high-performance embedded systems.
Additional Information
Series: LPC40xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-LQFP |
| Mounting Type | Surface Mount |
| Speed | 120MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 96K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4032 x 8 |
| Core Processor | ARM® Cortex®-M4 |
| Data Converters | A/D 8x12b; D/A 1x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Supplier Device Package | 208-LQFP (28x28) |
| Number of I/O | 165 |
| Programmable | Not Verified |
